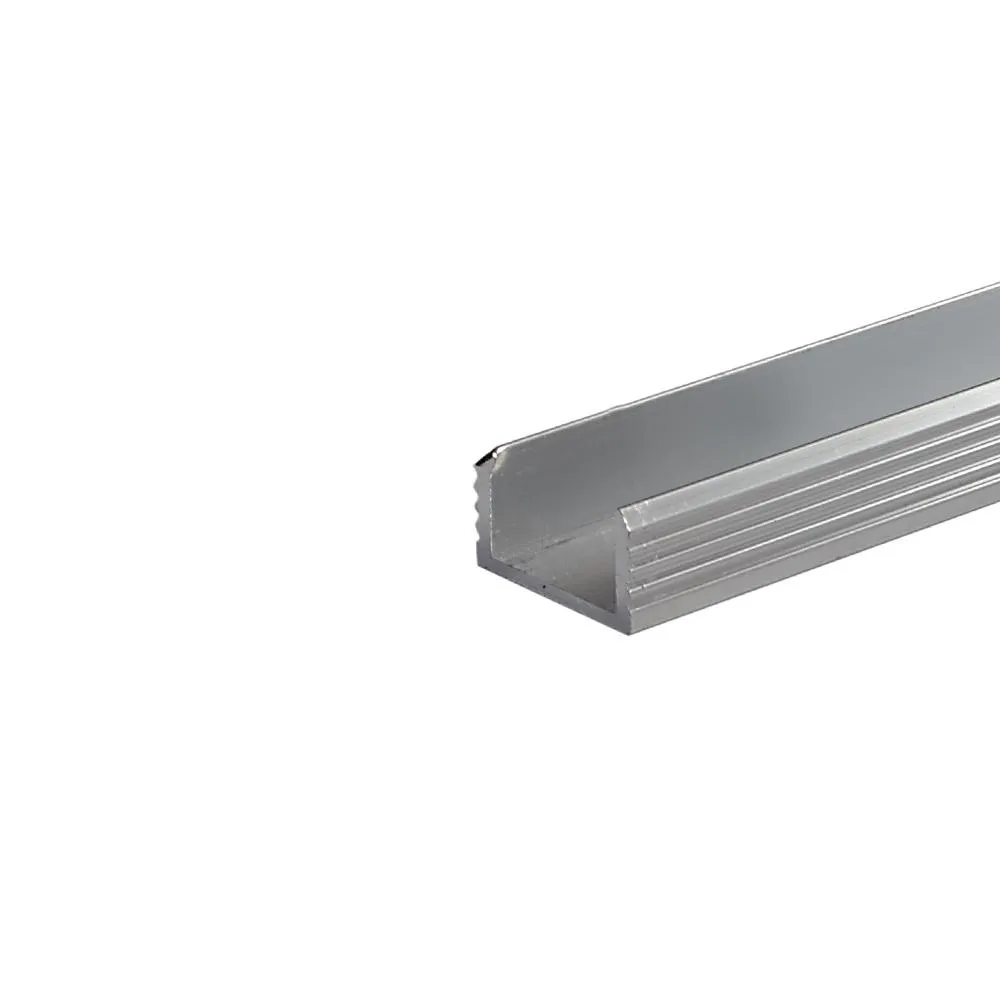

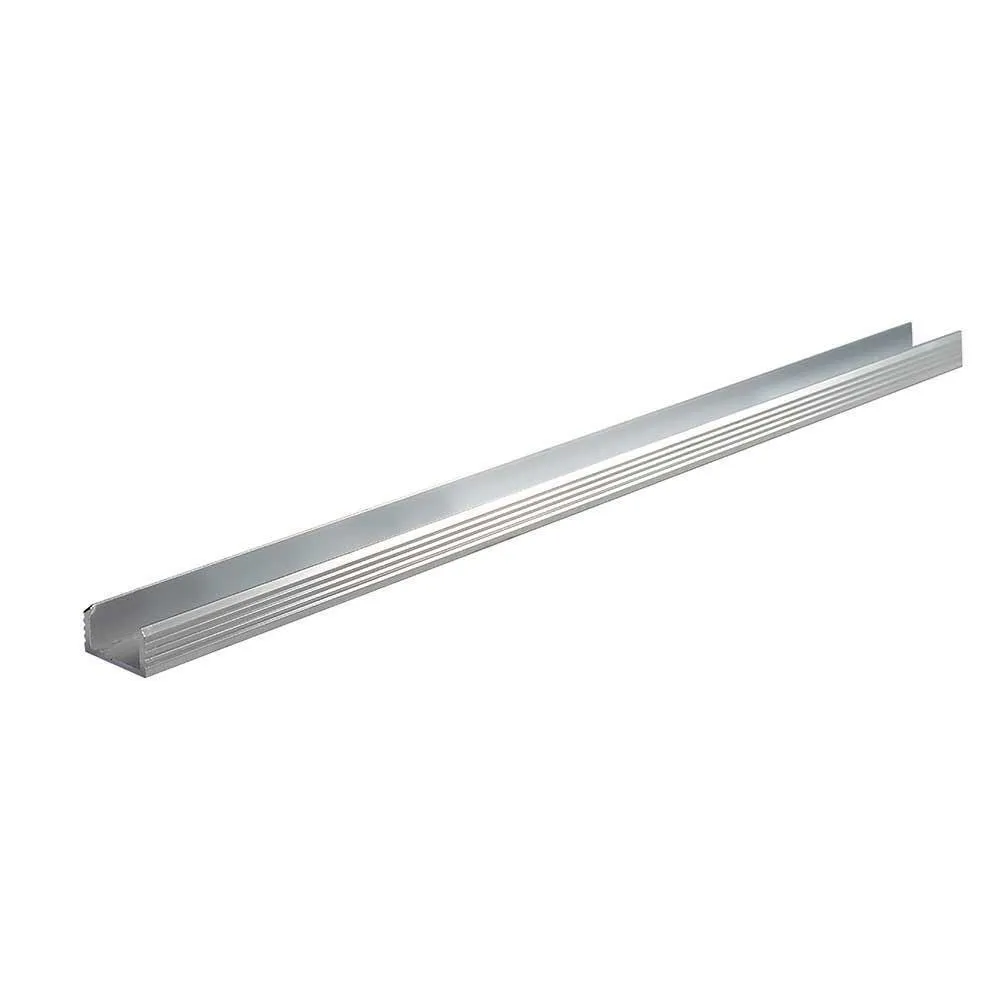

LED Regular Surface Aluminum Channel includes our aircraft grade aluminum channel with various lens options. Creating a modern and sleek style LED strip light installation has never been easier.
to view EL-CH-001 Channel Lens Options.
Key Features
- Comes in 1.22-meter (4 ft) or 2.44-meter (8 ft) sections and can be custom cut to any length.
- 19 mm wide by 10 mm height.
- Perfect for mounting LED Strip Light up to 14 mm in width.
- Rigid, Flexible, and dust proof housing can be surface or recess mounted.
- Channel lens protects LED strip light from the environment and creates diffused lighting effects, sold separately.
- Large selection of channel lens options. Round surface and tube style lens can be mounted over the outer walls of the aluminum channel. Flat surface style lens can be easily clipped into the aluminum channel.
- LED Aluminum Mounting Channels does not qualify for Free Standard Shipping offer. Additional shipping charges will be billed separately.
- Aluminum channels are not returnable due to the packaging and shipping costs.
Applications
- For use with LED Strip lights up to 14 mm in width.
Specifications
| Channel Height | 0.39 in / 10 mm thick |
|---|---|
| Inside Width | 0.55 in / 14 mm wide |
| Outside Width | 0.75 in / 19 mm wide |
| Length | 48 or 96 in (1.22 or 1.44 m) Long |
| LED Strip Width | 14 mm |
| Lens Styles | Round, Flat, or Tube |
| Environment | Indoor Use - Dry Location |
| Channel Finish | Aluminum |
| Manufacturer | Elumalight |
