BetaFPV C04 Camera and VTX Module

BetaFPV C04 Camera and VTX Module

$ 43.00

$ 0.00

Save: $

Version:
  • M04BetaflightFC
  • CetusV2CetusFC
Unavailable
Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

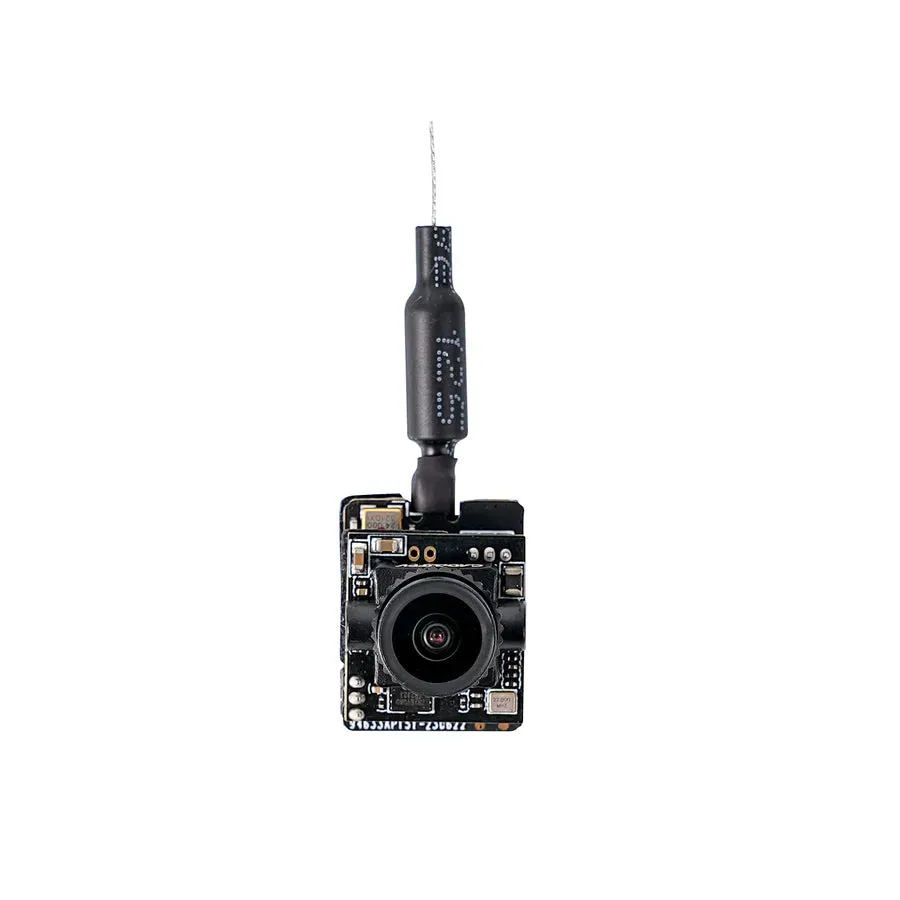

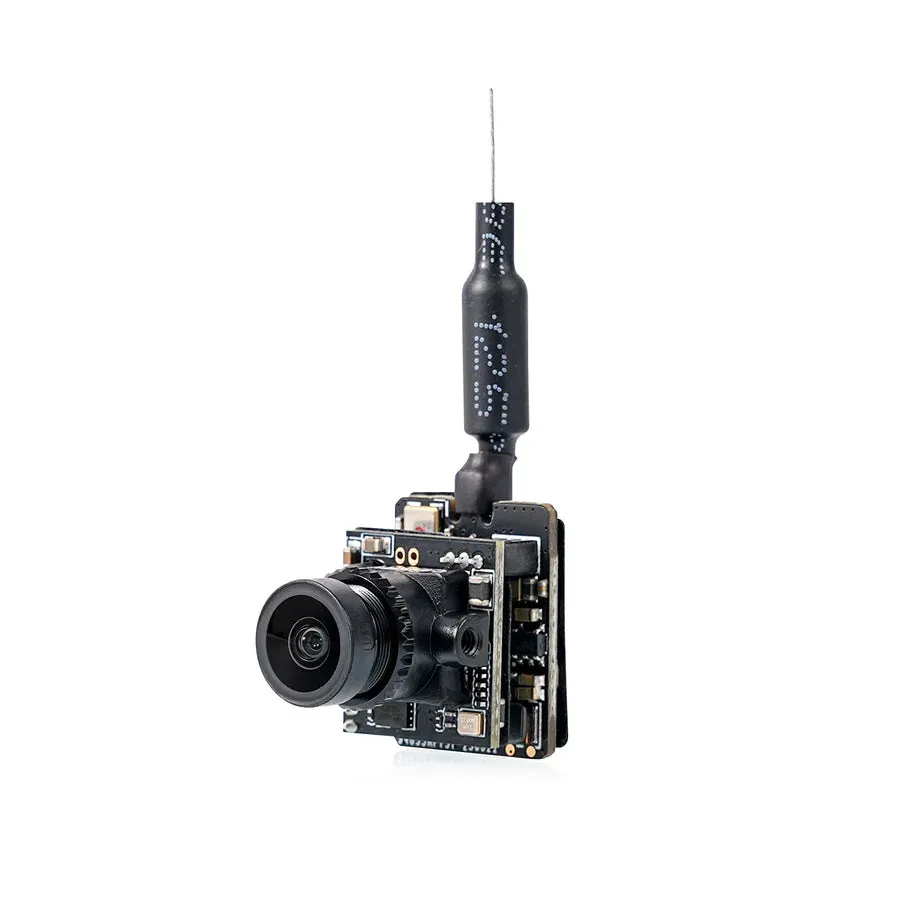

The modular C04 Camera and VTX Module for the Cetus X quadcopter offer easy installation and usage. Simply plug and play. With its lightweight 4.14g design and 1200TVL resolution, this camera delivers outstanding performance for micro FPV quadcopters. It provides a wide 160° field of view and utilises a 1/3'' CMOS sensor for crisp and vibrant images. By purchasing and replacing it on your Cetus X quadcopter, pilots can secure emergency backup and minimise downtime.

Features

  • The modular design allows for easy installation and use, without the need for professional soldering skills. Simply plug and play directly.
  • The max output power is up to 350~400mW, so pilots can fly longer, and farther explore more possibilities, and have fun.

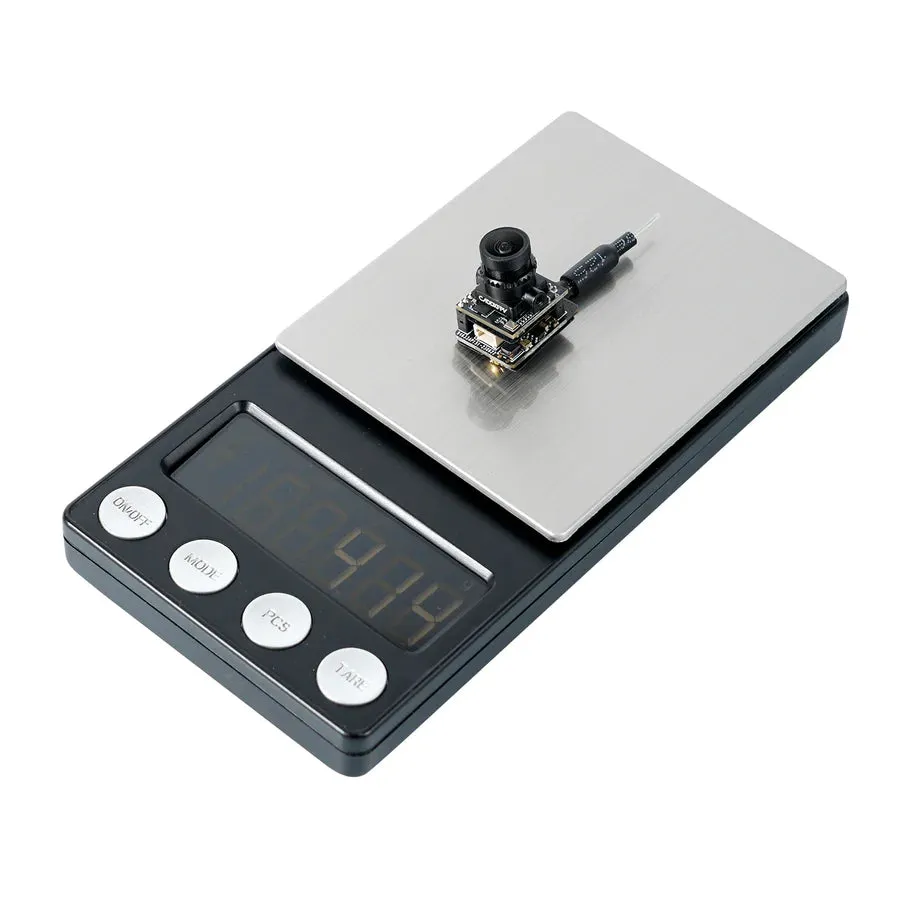

  • Miniature, and lightweight design, weight at only 4.14g with antenna and adjustable output power for longer-distance flying.
  • 1200TVL resolution and 1/3" CMOS sensor ensure good quality and a clear image.
    With a wider 160° FOV, it can record wide and beautiful scenes.
  • If you have the Betaflight Version flight controller for your Cetus X quadcopter, please select the M04 Version C04 Camera and VTX Module. Otherwise, choose the Cetus V2 Version.

Specifications

  • Item: C04 Camera and VTX Module(M04 VTX/Cetus VTX V2)
  • Camera: C04 FPV Micro Camera
  • Image Sensor: 1/3" CMOS Sensor
  • Horizontal Resolution: 1200TVL
  • FOV: 160°
  • Video System: NTSC (4:3)
  • Output power: 25-400mW(M04 VTX)/ 25-350mW(Cetus VTX V2)
  • Supply Voltage: 5V
  • Size: 14.5*21*23.5mm(without antenna)
  • Weight: 4.14g(with antenna)
  • Frequency: 5 bands 40 channels with Raceband(M04 VTX),1 band 8 channels(B band)(Cetus VTX V2)

Frequency of the C04 Canera and VTX Module

Note: The Cetus V2 Version is limited to a B frequency, while the M04 Version encompasses all the frequencies listed above.

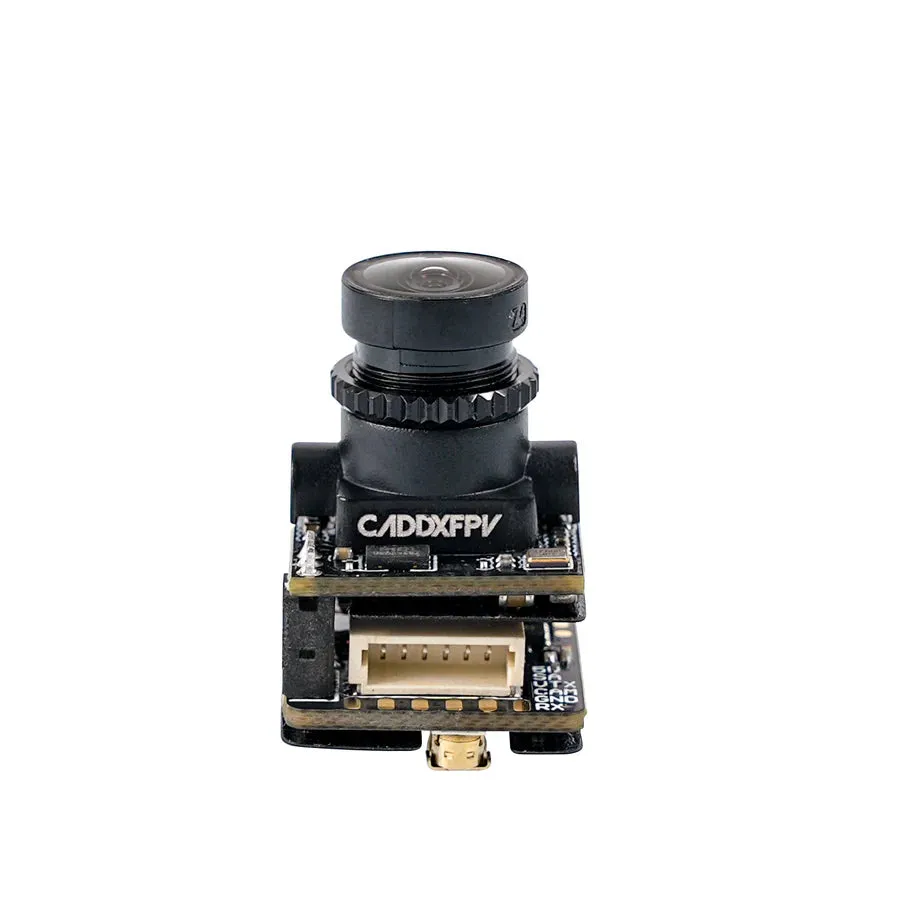

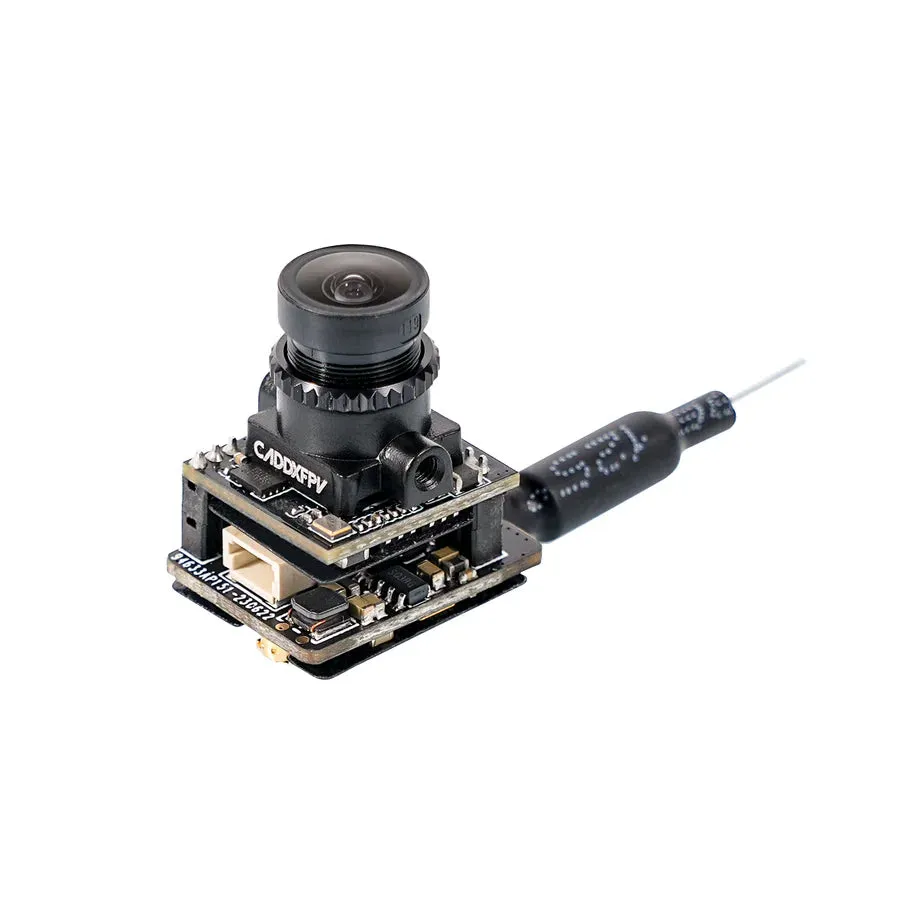

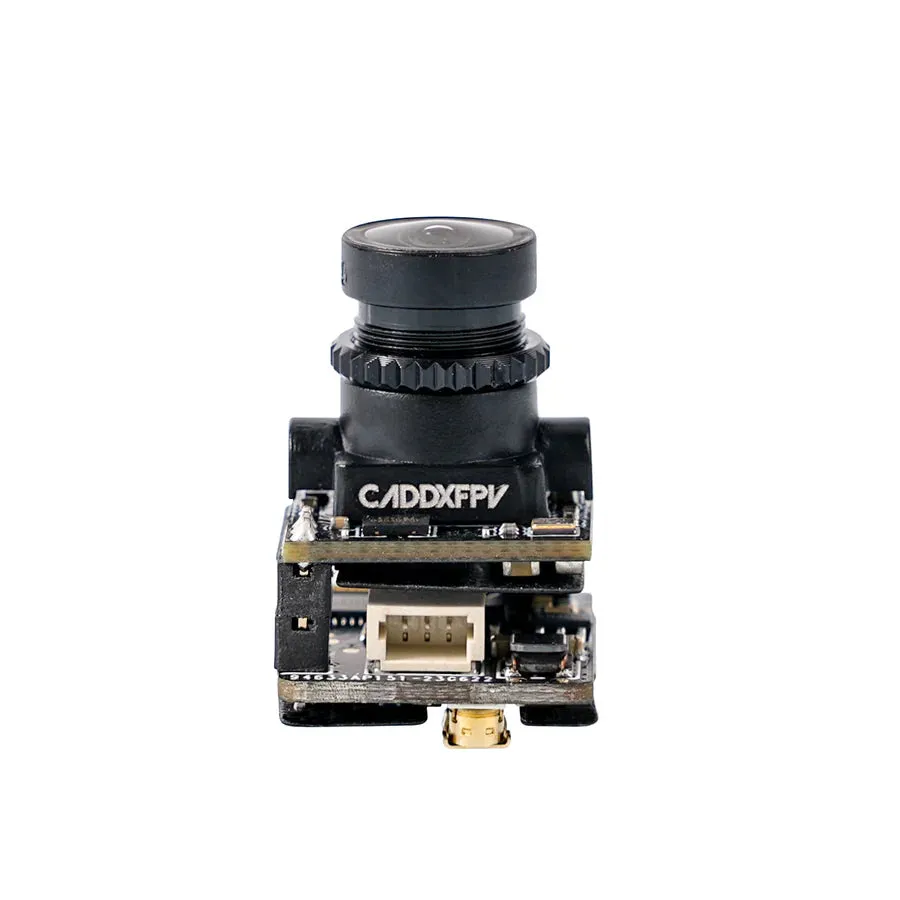

Plug-N-Play Connector

The camera and VTX have already soldered together, plug and play directly. It can be easily installed and used without professional soldering skills. Suitable for Cetus X Brushless Quadcopter and Cetus X Brushless Whoop Frame.

Recommend Parts

Includes

  • 1 * C04 Camera and VTX Module(M04 Version)
  • 1 * Cable
  • 4 * Screws

  • 1 * C04 Camera and VTX Module(Cetus V2 Version)
  • 1 * Cable
  • 2 * Screws
